Cab ChassisIsuzu NRR 132″ WB, Gas Engine
Body Length172″
GVW19,500 lbs
Tank Capacity773 gallon
Tank Configuration400/200/80/58/35
600 gallon fiberglass split 400/200, 80 gallon upright, 58 gallon, 35 gallon

Standard Components & Options

STANDARD COMPONENTS

  • Fiberglass and Plastic Tanks
  • (2) Udor Pump Options
  • (2) Hannay Hose Reels
  • (2) Hoses – 1/2″, 300′ and 3/8″, 400′
  • 14 HP Vanguard/Honda Engines
  • Stainless Steel Manifolds
  • PHC Box™
  • Air Gap System
  • Backpack Fill System
  • Backup Camera
  • Freshwater Transfer Pump
  • Induction System
  • Inverter for Charging
  • Small Batteries
  • Roll Up Doors
  • Strobe Lights

OPTIONS

  • 5/8″, 300′ Hose
  • Drivers Side Hose Reel
  • Freshwater Suction Hose
  • Hand & Eye Wash Station
  • Jet Agitation to Mix Tanks
  • Tool Brackets
  • Trailer Hitch

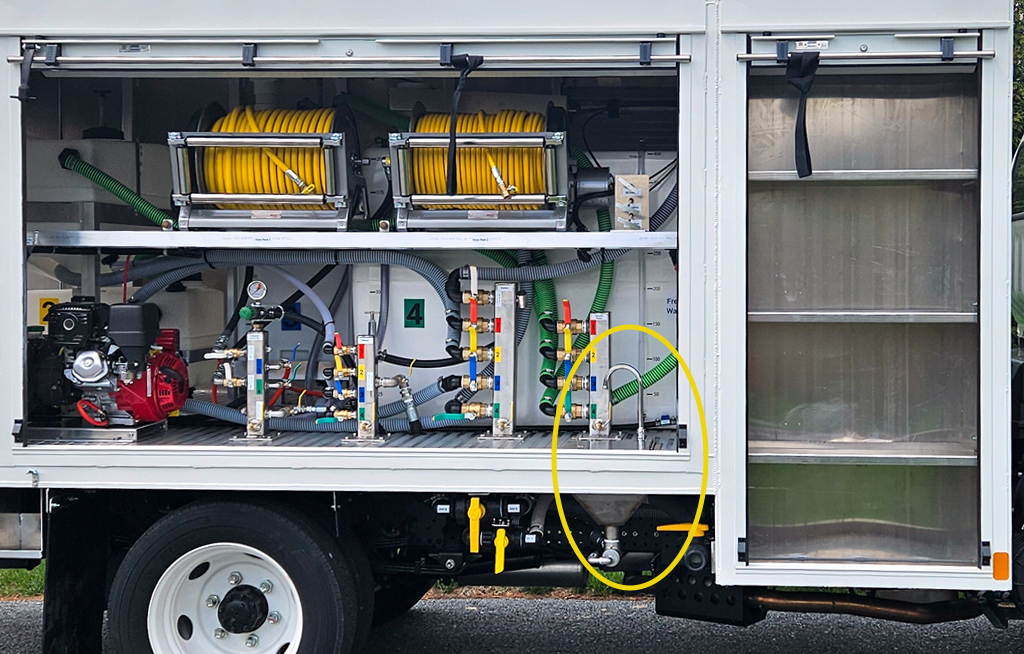

Our APEX workbench area: including eductor tank to the immediate left of the large storage area (PHC Box™), for product storage, measuring tools and info guides.
Our APEX workbench area: including eductor tank to the immediate left of the large storage area (PHC Box™) which is for product storage, measuring tools and info guides.
Rear entry door with safe, easy access.
Rear entry door with safe, easy access.
Well labeled manifolds with visual controls show which tanks are in use.
Well labeled manifolds with visual controls show which tanks are in use.
Rear drop down area for extra storage.
Rear drop down area for extra storage.

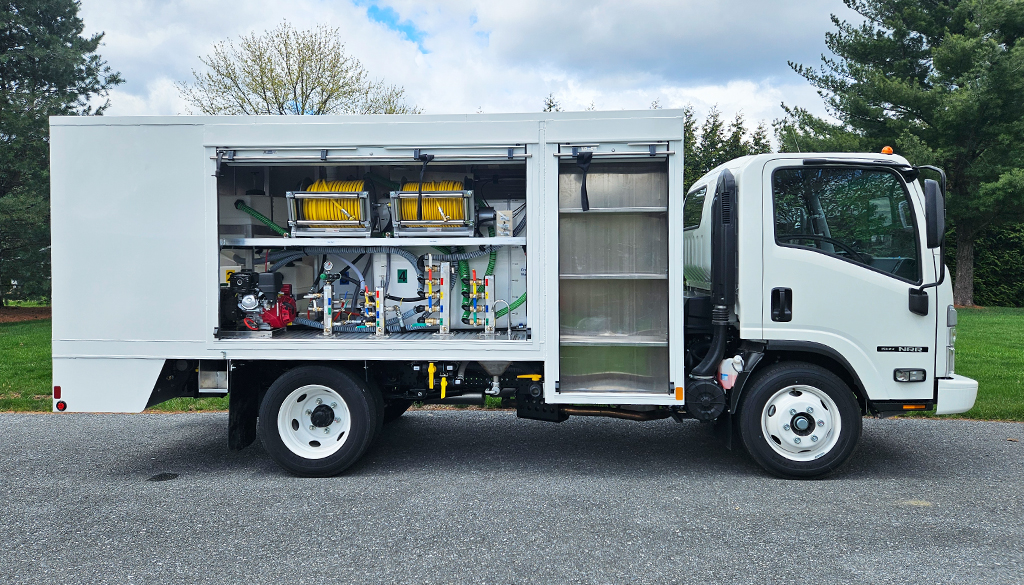

Passenger Side
Passenger Side
Driver Side
Driver Side
Rear End
Rear End
